TurboChef
TurboChef - NGC-3005 - Dual 40A Solid State Relay
part #NGC-3005
TurboChef - NGC-3005 - Dual 40A Solid State Relay (C3D / NGC / i5 / i3 / NGO / HHB / HHB2)
F8 Faults can be caused by a faulty SSR. If your SSR is sticking, your heaters may stay on and keep heating even when the heat is off. It may keep heating until the Hi-Limit (102075) trips. The SSR may even burn out the IR Element (NGC-3003 or ENC-3002) if it gets hot enough.
F2 faults mean the oven is not staying hot enough to cook food. On NGCs Usually it is a top wire that has burnt off, a heater on (NGC-3011 or NGC-3003) has gone bad or a SSR (NGC-3005) isn't operating properly. It can also occur if the door is left open for too long in between cook cycles or the white glass waveguide covers (NGC-3029) are cracked or broken inside the oven.
Â

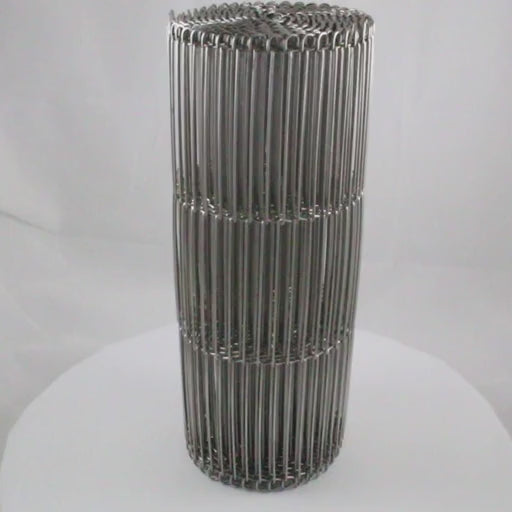

TurboChef - HCT-4143 - Chain, #35x52 Links, w/ Master
part #HCT-4143
Chain, #35x52 Links, w/ Master
TurboChef - 102807 - Door Hinge
part #102807
TurboChef - 102807 - Door Hinge (HHB)
F4 Faults are caused by the door switched being out of sequence. This can occasionally blow the 20A Fuse (100599). This fault can be caused by bent door switches (102012 or i1-3207) or faulty hinges.
NGC Left Hinge NGC-1572
NGC Right Hinge NGC-1573
HHB Hinge 102807
Encore / NGO Left Hinge ENC-3015-1
Encore / NGO Right Hinge ENC-3015-2
TurboChef - i3-3209-4 Bottom Blower Motor Stainless Steel (Replaces i3-3209-2)
part #i3-3209-4
TurboChef - i3-3209-4 Bottom Blower Motor for i1 and i3 ovens, Stainless Steel
F1 Faults can be caused by a faulty blower or BMSC (CON-7039) in most cases.
TurboChef - 105108 - Motor, Gear, 15 RPM, 230V, 60HZ (i5, i3, NGO Stirrer Motor)
part #105108
Motor, Gear, 15 RPM, 230V, 60HZ (i5, i3, NGO Stirrer Motor)
TurboChef - ENC-3050 (Replaces NGC-3033) - Door Switch Replacement Service Kit
part #ENC-3050
TurboChef - ENC-3050 (Replaces NGC-3033) - Door Switch Replacement Service Kit (NGC)
TurboChef - i3-3209-3 Upper Blower Motor, Stainless Stee (Replaces i3-3209-1)
part #i3-3209-3
TurboChef - i3-3209-3 Upper Blower Motor, Stainless Steel (i1,i3 Replaces i3-3209-1
F1 Faults can be caused by a faulty blower or BMSC (CON-7039) in most cases.
TurboChef - 101279 - Relay, Sealed,2P, DT, 30Amp, Class F, UL, CE
part #101279
Relay, Sealed,2P, DT, 30Amp, Class F, UL, CE
TurboChef - NGC-3029 - Waveguide Cover Service Kit (Prev. NGC-3036)
part #NGC-3029
TurboChef - NGC-3029 - Waveguide Cover Service Kit (Prev. NGC-3036) (NGC)
F2 faults mean the oven is not staying hot enough to cook food. Usually it is a top wire that has burnt off, a heater (NGC-3011 or NGC-3003) has gone bad or a SSR (NGC-3005) isn't operating properly. It can also occur if the door is left open for too long in between cook cycles or the white glass waveguide covers (NGC-3029) are cracked or broken inside the oven.
Â

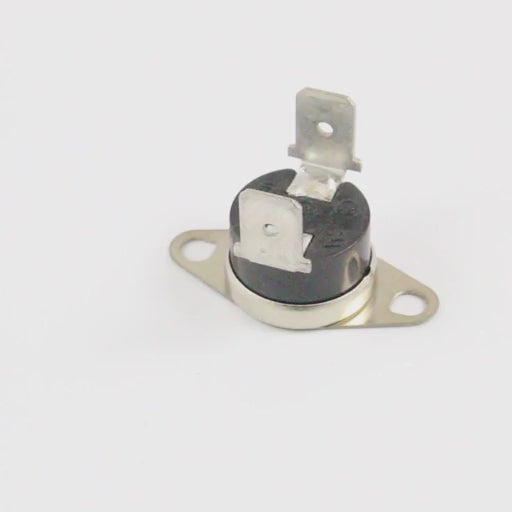

TurboChef - 102086 - 120F Snap Disc Thermostat
part #102086
TurboChef - 102086 - 120F Snap Disc Thermostat
TurboChef - 103180 - Oven Cleaner Powder Kit
part #103180
TurboChef - 103180 - Oven Cleaner Powder Kit
Get one reusable bottle and sprayer plus 16 packets of powdered concentrate! Just add water. This saves money and storage space and helps the environment all in one easy order.
