TurboChef - NGC-3015 - Magnetron Service Kit (NGC)
F3 Faults - Usually a sign one or both of your magnetrons are bad or faulty. There are a number of things that can cause your magnetrons to be faulty. These include Waveguides, HV Transformers, Capacitors, and Diodes. If your oven is flashing F3, it could be a blown 20A fuse (Part # 100599)
F5 Faults - This error is caused by the Magnetrons over heating. Make sure there is proper airflow from the Magnetron Cooling Fan (100083), also inspect to see if the Magnetron tips are discolored. If this is the case, the Magnetrons should be replaced.

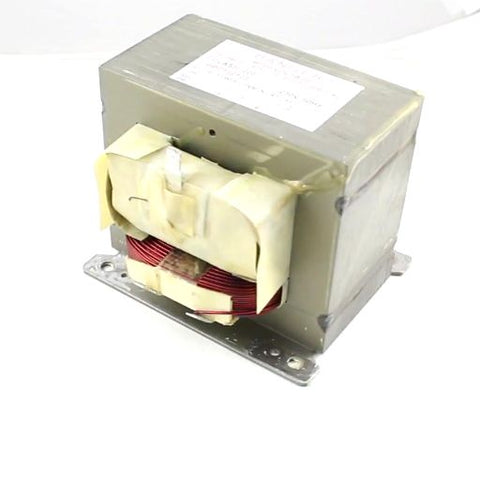

TurboChef - NGC-3062-1 - HV Transformer (Non-Japan) (NGC / i5 / i3 / NGO)
F3 Faults - Usually a sign one or both of your HV Transformers are bad or faulty. There are a number of things that can cause your HV Transformers to be faulty. These include Magnetrons, Waveguides, Capacitors, and Diodes. If your oven is flashing F3, it could be a blown 20A fuse (Part # 100599)
TurboChef - 100599 - 20 Amp Fuse (NGC / i5 / i3 / NGO / HHC3240 / HHC2020)
TurboChef - 100481 - High Voltage Diode (C3/C3D/NGC/i5/i3/NGO)
TurboChef - 102012 - Door Switch (C3D / NGC / i5 / i3 / NGO / HHB2)
F4 Faults are caused by the door switched being out of sequence. This can occasionally blow the 20A Fuse (100599). This fault can be caused by bent door switches (102012 or i1-3207) or faulty hinges.
NGC Left Hinge NGC-1572
NGC Right Hinge NGC-1573
HHB Hinge 102807
Encore / NGO Left Hinge ENC-3015-1
Encore / NGO Right Hinge ENC-3015-2
TurboChef - 100086 - Fan Finger Guard (C3D / NGC / i5 / i3)
TurboChef - NGC-3005 - Dual 40A Solid State Relay (C3D / NGC / i5 / i3 / NGO / HHB / HHB2)
F8 Faults can be caused by a faulty SSR. If your SSR is sticking, your heaters may stay on and keep heating even when the heat is off. It may keep heating until the Hi-Limit (102075) trips. The SSR may even burn out the IR Element (NGC-3003 or ENC-3002) if it gets hot enough.
F2 faults mean the oven is not staying hot enough to cook food. On NGCs Usually it is a top wire that has burnt off, a heater on (NGC-3011 or NGC-3003) has gone bad or a SSR (NGC-3005) isn't operating properly. It can also occur if the door is left open for too long in between cook cycles or the white glass waveguide covers (NGC-3029) are cracked or broken inside the oven.
Turbochef - 102075 - Hi-Limit Switch - Item #102075
F8 Faults can be caused by a faulty Hi-Limit. If your Hi-Limit continually trips, it could be a faulty SSR (NGC-3005) causing the issue. Each time you have to reset your Hi-Limit it lowers the tolerance , your heaters may stay on and keep heating even when the heat is off. It may keep heating until the Hi-Limit (102075) trips. The SSR may even burn out the IR Element (NGC-3003 or ENC-3002) if it gets hot enough.

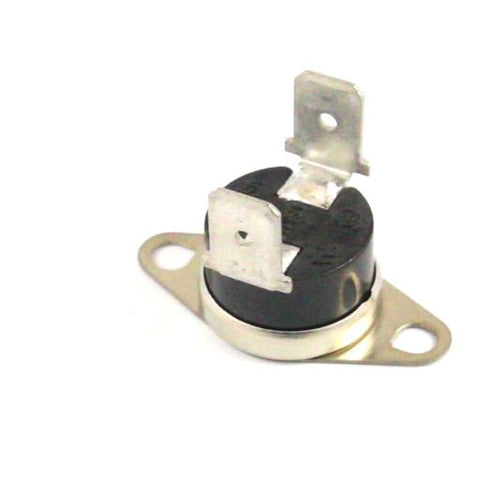

TurboChef -102070 - Magnetron Thermostat (C3 / C3D / NGC / i5)
Motor, Gear, 15 RPM, 230V, 60HZ (i5, i3, NGO Stirrer Motor)
TurboChef - NGC-3061-1 - Filament Transformer (Non-Japan) (NGC / i5 / i3 / NGO)
TurboChef - 100592 - 12 Amp Fuse (C3 / CD3 / NGC / i5 / i3 / NGO / HHB / HHB2)
